Technical Specification:

Supply Voltage: 170V AC – 280V AC

Current Range: 0-30A

Working Temperature: 0-50 C

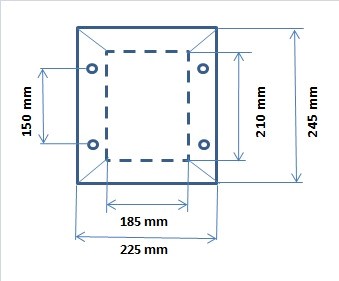

Overall Size : 210(H) x 185(L) x 100(D)

Phase: 1:1 (RWP 1 phase HPP 1 Phase)

     Phase: 1:3 (RWP 1 phase: HPP 3 Phase)
     Phase: 3:3 (RWP 3 phase: HPP 3 Phase)

SALIENT FEATURES

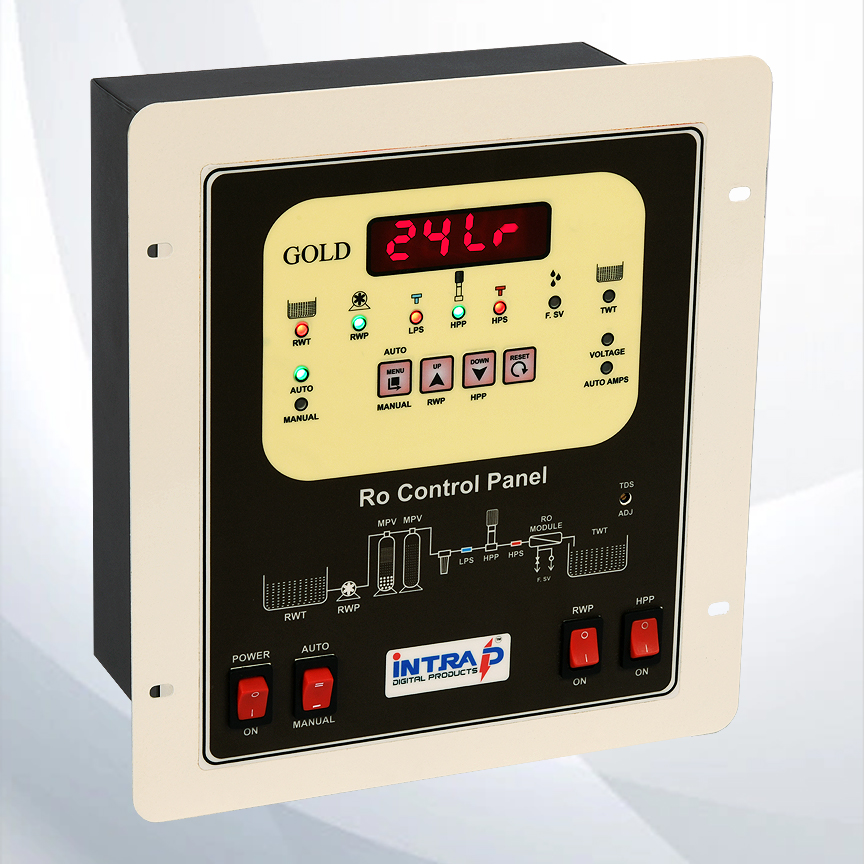

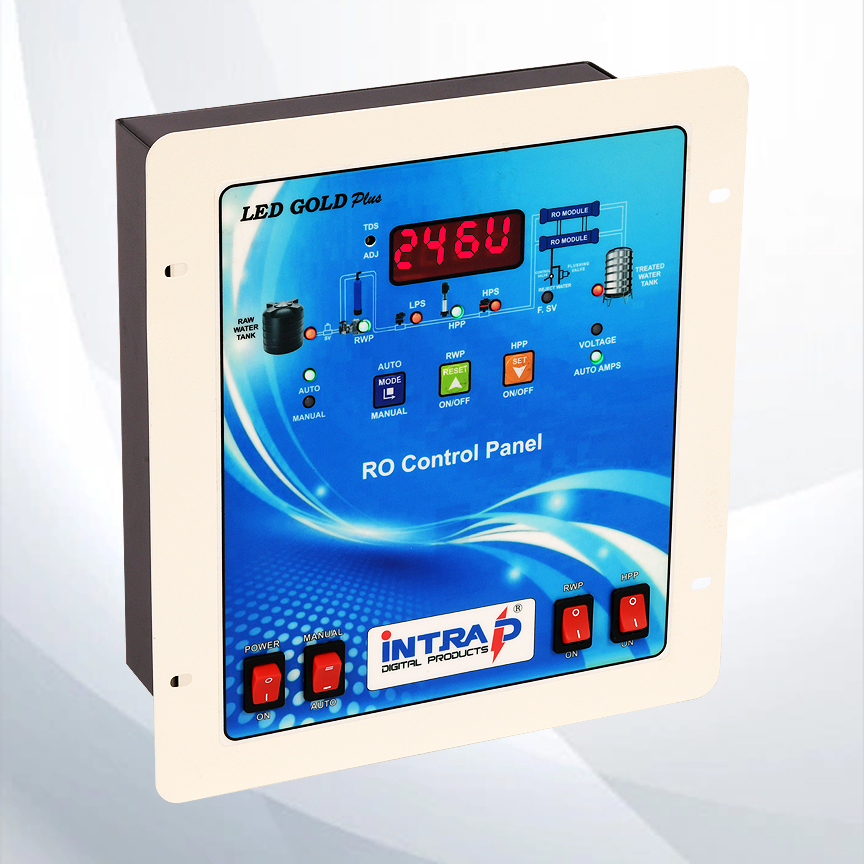

• ✔ Micro-Controller & SMPS based RO DIGITAL CONTROL Panel
• ✔ Display-LED 4 Digit- 7 Segment
• ✔ TDS & CONDUCTIVITY Display
• ✔ Range: 1000LPH (1:1, 1:3)
     2000LPH (1:1, 1:3, 3:3)
• ✔ AUTO AMPEARE Settings for RWP & HPP
• ✔ AUTO / MANUAL Mode options
• ✔ HIGH & LOW Voltage Protections
• ✔ RWP & HPP Overload and Dry Run Protections
• ✔ UV & Dosing Pump Connections provision
• ✔ HPS Provision & Monitoring
• ✔ LPS Provision & Monitoring
• ✔ Raw Water Tank and Treated Water Tank Float
• ✔ Flushing Time & Flushing Interval Time
• ✔ Trip Time
• ✔ 3-PHASE –Voltage Display ,Monitoring Single Phase Preventer and Voltage Unbalance Protection in all 3-PHASE Panels
• ✔ All settings are editable
