Product Features

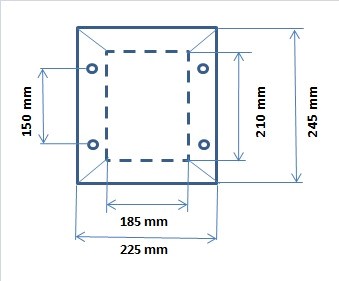

Overall Size : 210(H) x 185(L) x 80(D)
Cutout Size : 210 (H) x 185 (L)
Display : 2” TFT COLOUR DISPLAY
ONLINE monitor with WEB and APP for all the Functions and Reports, wherever in the World

Technical Specification

Supply Voltage: 170V AC – 280V AC
Current Range: 0-30A
Working Temperature: 0-50 C
Phase: 1:1 (RWP 1 phase: HPP 1 Phase)
Phase: 1:3 (RWP 1 phase: HPP 3 Phase)
Phase: 3:3 (RWP 3 phase: HPP 3 Phase)

SALIENT FEATURES

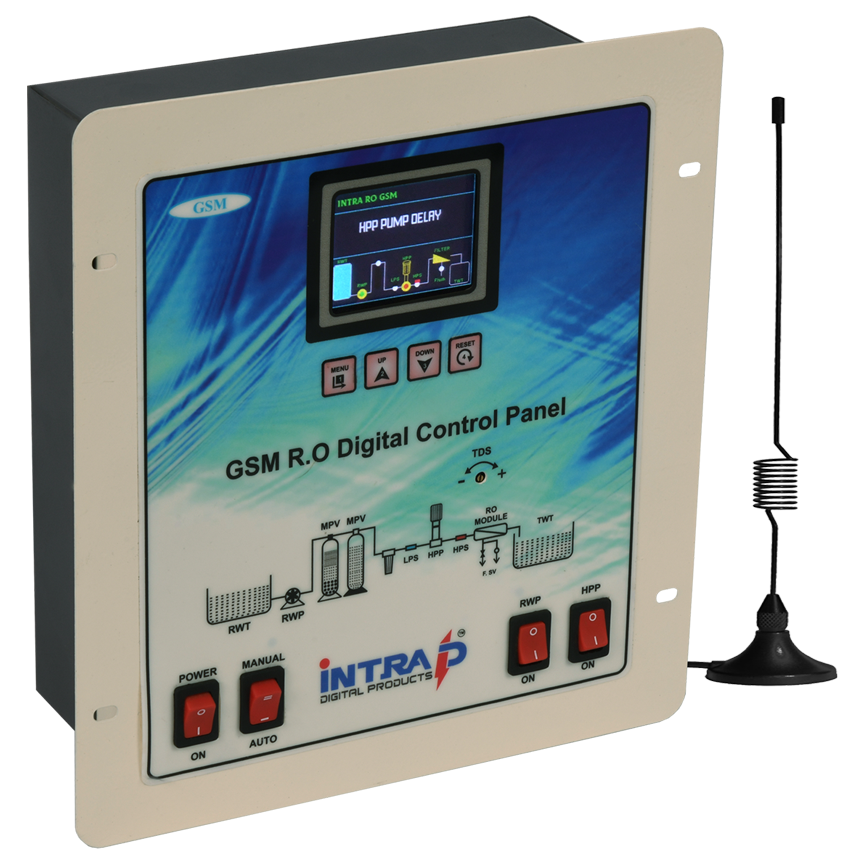

• • Micro-Controller & SMPS BASED RO DIGITAL CONTROL PANEL
• • Auto & Semi Auto Multi Port Valve Configure
• • Auto Amps Alert System, First Time in India
• • Permit Flow and RO Flow
• • GSM & GPRS (Through WEB and APP Monitoring & Control)
• • Raw Water Tank Float; Dosing Float & Treated (Product) Water Tank Float
• • LPS Provision & Monitoring
• • HPS Provision & Monitoring
• • High Voltage Protection.; Low Voltage Protection
• • Dry Run & over Load Protection for RWP and HPP pumps
• • TDS, Temperature & Conductivity Display
• • PH optional
• • Trip Time Option (When Floats are not connected)
• • Service Time, Back Wash Time & Rinse Time
• • Flushing (While Starting and Sleeping of RO Plant) & Flushing Interval Time
• • Total Working Hours. Date of Installation
• • TDS & Conductivity High Limit Alert
• • AUTO / MANUAL Options
• • Pressure sensors (3) Monitoring
• • Cumulative water flow counting
• • Mounting Wall / Panel Mount
• • Unit wise all parameters Reports shall be export to Excel period wise
• • All Settings Editable through Device, WEB and APP
